翻譯這篇文章的目的是想讓大家了解一下國外是怎樣做設計開發的，運用科學的方法做研究，這種方法可以運用到工藝、清潔程序等開發中，雖然我們對本文也不是理解太透徹，但我們很想把這篇文章拋給大家，供大家參考。另：就是TOC法（總有機碳法）被國外廣泛應用到設備清潔和清潔驗證中。



This article examines using experimental design methods to define different procedures for intermediate bulk container cleaning. The authors have evaluated this new approach, in which a highly soluble, low-dose product and a relatively insoluble high-dose product constituted experimental input variables.



本文研究使用實驗設計方法來定義中型散裝容器（IBC）的不同清潔程序。作者用高溶解性低劑量產品和相對溶解性不好高劑量的產品構成實驗的輸入變量評估了這種新方法。



Defining cleaning procedures is crucial to ensuring the elimination of product residues from non-dedicated process equipment. This process can be expensive and challenging, however, in facilities where 30-40 different oral solid-dose products may be manufactured each year.



定義清潔程序?qū)τ诖_保從非專用工藝設備上消除產品殘留來說是至關重要的。然而對于設備上每年可能會生產30-40種不同的口服固體制劑產品，這一過程可能是花費昂貴并且具有挑戰性的。



Generally, best cleaning procedures are defined based on monitoring final drug content, pH, and the conductivity of water samples for each product until they are within acceptable ranges.



一般來說，最好的清潔程序的定義是基于監控每個產品淋洗水樣的終產品的含量、pH和的電導率，直到它們都在可接受范圍內。



This article examines a new way of doing this, using experimental design methods to define different procedures for intermediate bulk container (IBC) cleaning.



本文研究一種新的方式來做到這一點，使用實驗設計方法來定義中型散裝容器（IBC）的不同清潔程序。



The authors have evaluated this new approach, in which a highly soluble, low-dose product and a relatively insoluble high-dose product constituted experimental input variables.



作者們?cè)u(píng)估了這種新方法，用高溶解性低劑量產品和相對溶解性不好高劑量的產品構成實驗的輸入變量。



Given the number and wide variety of APIs, ingredients, cleaning and processing materials used in pharmaceutical manufacturing, pharmaceutical products could potentially be contaminated with any number of substances. This is why verifying clean liness through cleaning validation is so crucial. Validation identifies potential residues, whether from APIs, ingredients, cleaning agentsand microorganisms, and sets up a process through which potential contaminationis reduced to the lowest acceptable limits (1).



考慮到制藥生產中使用的API，輔料，清潔和加工材料數量和種類繁多，藥品可能會受到許多物質的污染。這就是為什么通過清潔驗證來確認清潔是如此關鍵。驗證確定了潛在的殘留物，無論是來自于API，輔料，清洗劑還是微生物，并建立了一個過程，通過這種過程潛在的污染物被降至最低可接受的限度。



Usually, these limits are defined based on visual, chemical, and microbiological data(2). Chemical limits are expressed as the maximum concentration in the next product (3), amount per surface unit (4), or concentration in the extraction solvent (5). An acceptance limit plus an internal action limit allows pharmaceutical manufacturers to achieve more stringent process control.



通常，這些限度的定義是基于目視，化學，和微生物數據。化學限度表示為在下一產品中的最大濃度，每單位表面積上的數量，或者萃取溶劑中的濃度。可接受限度加上內部行動限度使得制藥企業能夠?qū)崿F(xiàn)更嚴格的工藝控制。



Once potential residues have been defined, detection methods must be established.Usually, specific methods such as high-performance liquid chromatography (HPLC)(6) and ultraviolet spectroscopy (UV) (7) are used, but non-specific methods such as total organic carbon (TOC) (8, 9) may also be applied, and pH and conductivity determinations should also be used to evaluate the performance ofthe cleaning procedure.



一旦定義了潛在殘留物，必須要建立檢驗方法。通常情況下，會使用專屬性方法，如HPLC和UV，但是非專屬性方法如總有機碳（TOC）也可能被使用，同時pH、電導率檢測也應該被用來評估清潔程序的性能。



Disadvantages of specific methods include the need to develop assays for each new API and validate those methods, a process that can be long and expensive (10, 11). However, TOCcan potentially be applied to any product, is sensitive enough to detect quantities down to μg/L or parts per billion (ppb), and typically involves less time-consuming sample preparation than other methods (12).



專屬性方法的缺點包括需要為每一種新的API開發檢測方法并進行方法學驗證，這一過程可能是漫長而昂貴的。然而，總有機碳法（TOC）可被應用到任何產品，靈敏度足以使檢測限達到μg/L或ppb，相比其他方法會較少涉及耗時樣品的制備。



Although specific methods are usually preferred, non-specific techniques can be used if there is a scientific justification for doing so in continuous process monitoring, whereas specific methods could used only for initial validation.



盡管專屬性方法通常是首選的，如果在連續工藝監控中有特定的科學依據也是可以使用非專屬性技術的，專屬性方法只能用于初始驗證。



Sampling methods are then selected by assaying rinse water or by surface swabbing (13).Rinse water sampling is used when dealing with very large pieces of equipment or piping, or in situations where there is limited access to equipment surfaces(14). These samples should be correlated with direct swab sampling to be sure that residues are being detected properly and do not remain undissolved oninaccessible equipment surfaces.



取樣方法選擇檢測淋洗水法或表面擦拭法。在處理非常大的設備、管道、或者在設備表面接觸受限的情況下采用淋洗法取樣。涉及采用直接擦拭取樣的樣品情況，應確保殘留物能夠被合理檢測到，并且在接觸不到的設備表面不會有未溶解的殘留物。



實驗設計簡化操作流程



The authors launched a study to apply the principles of experimental design, and recommendations for cleaning validation, to develop a faster way to set andvalidate procedures for cleaning intermediate bulk containers (IBC) for granulated products. They extended this methodology and applied it to set cleaning validation limits for a vertical granulator in a multiproduct oral solid dosage form facility. The experiments were conducted during the performance qualification step of both of these systems.



作者開展了一項研究，應用實驗設計原理和清潔驗證的建議，開發一種更快速的方法為顆粒狀產品的IBC容器的清洗來設定和驗證程序。他們擴展了這一方法，并將其應用于在多產品口服固體制劑設備中，為立式制粒機設定了清潔驗證范圍。這些實驗是在這兩種系統的性能鑒定步驟中進行的。



Plackett-Burman experimental design methods were used to identify the most important cleaning process parameters, with the minimum number of experimental runs, early in the experimentation phase. To evaluate interactions between variables, a two-level fractional factorial design was conducted after the Plackett-Burman modeling.



Plackett-Burman實驗設計（篩選試驗設計）方法用于識別最重要的清潔工藝參數，在實驗階段的早期，運行最少數量的實驗。為了評估變量之間的相互作用，在Plackett-Burman模型以后進行了二水準部分階乘實驗設計。



Although the equation derived from the two-level factorial design explained the cleaning processes as a third-order equation, the initial Plackett-Burman fitting first-order model (which detected only linear effects) was more valuable inpredicting the process parameters in each step of the cleaning process. The process was scaled up for a vertical granulator, and the cleaning design space was verified.



盡管從二水準部分階乘實驗設計得到的方程式解釋了清潔過程是一個三階方程，但最初的適用于一階模型的Plackett-Burman在每一步清洗過程中預測工藝參數上更有價值。這一過程是為了擴大立式制粒機的規模，清洗設計空間也得到了驗證。



Results suggest that, although factorial design is useful for understanding process behavior and input variables interactions, Plackett-Burman designs allowed definition of linear models to predict process parameters for 13 new cleaning procedures based on product dose. Five of the cleaning procedures (or recipes), predicted from experimental design, were experimentally confirmed using nine different products. Previous analytical detergent characterization helped todefine the acceptance limits equal to the United States Pharmacopeia(USP) purified water pH and conductivity values.



結果表明，雖然階乘設計對于理解過程行為和輸入變量的相互作用非常有用，但Plackett-Burman設計允許線性模型的定義可以根據產品劑量來預測13個新的清洗過程的工藝參數。從實驗設計中預測的5個清洗程序(或配方)，通過使用9種不同的產品得到了實驗確認。先前的分析清潔劑的特性幫助定義了美國藥典(USP)純化的水pH值和電導率值的可接受限度。



The ratio between water volume and equipment surface allowed the procedure to be scaled up and used for granulator cleaning. The design space for the cleaning procedure was also checked in four independent runs for two high-dose products. Results show that the experimentally-derived models provided a high level of assurance that the cleaning procedures met specifications.



用用水量和設備表面的比例使得該程序規模得到擴大并用于制粒機的清潔。清潔程序的設計空間也在對兩種高劑量產品的四次獨立運行中被檢測。結果表明，實驗得出的模型對于清潔程序符合規定提供了高水平的保證。



材料和方法部分



Cleaning stations. Automatic cleaning was conducted in a clean-out-of-place (COP) AISI 304 cabin (WB Model, Cosmec,Italy) for IBC and in a clean-in-place (CIP) system for a 600-L Glatt vertical granulator. A sequential process was used, combining an initial rinse phase to remove larger amounts of adhered product, and a second phase in which detergent was applied. In addition, there were two final rinse steps. Samples of the final rinse water were taken to determine external TOC, pH, and conductivity.The systems were designed to combine, in a synergistic mode, the spectrum of critical cleaning parameters (e.g., time, water, pressure, chemical action and temperature), and were automatically controlled to achieve a robust process(15).



清潔站IBC容器自動清潔采取離線清潔(COP)的方式在AISI304艙室中進行(WB型，化妝品，意大利)進行和600-L的格拉特立式制粒機系統采取在線清潔(CIP)的方式進行。使用了一個連續的過程，由初始階段淋洗液來移除大量附著的產品，第二階段在其中加入清潔劑。此外，還有兩個最后的淋洗步驟。收集最終淋洗水，檢測離線的總有機碳（TOC），pH和電導率。該系統的設計目的是在一個協同的模式下，將關鍵清洗參數(如：時間、水、壓力、化學反應和溫度)的條件合并，并被自動控制以達到一個穩健的過程。



分析方法



TOC was automatically conducted in a GE SIEVERS 900 TOC analyzer, while pH and conductivity were measured in a Mettler-Toledo Seven Multi instrument. Each measurement was repeated at least once. Purified water samples were taken during the last 10 seconds of the final rinse step in ERA ultra-low TOC contentcertified 40-mL TOC flasks.



總有機碳（TOC）是在GESIEVERS 900系列總有機碳分析儀中自動進行檢測的，而pH和電導率則是用梅特勒-托利多的綜合測試儀來測量的。每一次檢測至少重復一次。純化的水樣在最后10秒的最后淋洗步驟中被收集到ERA超低TOC含量認證的40ml總有機碳（TOC）燒瓶中。



實驗設計



For experimental design definition, version 6.0.1 of Stat-Ease, Inc.’s Design-Expert software was used. A Plackett-Burman design for six factors(i.e., initial rinse volume, detergent volume, detergent concentration, final rinse volume, purified water rinse volume, and product dose) was conducted as 18 runs in a single block, including two central points.



在實驗設計的定義中，使用了Stat-Ease, Inc.公司的 Design-Expert軟件的6.0.1版本。Plackett-Burman設計的 6 個因素(即：初始的淋洗體積、清潔劑體積、清潔劑濃度、最終淋洗量、純化水淋洗量和產品劑量)在一個單一的模塊（包括兩個中心點）中進行了 18 次運行。



Another two-level fractional factorial design (for the same six factors) was conducted to estimate the effects of all interactions in 18 runs, including two central points. Experiment was conducted as a single block.



另外一個二水準部分階乘實驗設計（相同的6個因素）被用來估計18次運行中所有相互作用的影響，包括兩個中心點。實驗是作為一個單一的模塊進行的。



Both designs were conducted with two different products, used as categorical variables: Product 1 (20-mg dose, highly soluble in water) and Product 2(400-mg dose with low water solubility).



兩種設計都是在兩種不同的產品中進行的，分別是：產品1(20mg劑量，高水溶性)和產品2(400mg劑量，低水溶性)。



A neutral detergent (Steris’ CIP 300) was used in the experimental phase and during evaluation of the predicted procedures. Steris’ CIP 200 acid detergent and its CIP 100 basic detergent were also evaluated during process performance qualification.



在實驗階段和預測過程的評估中使用了一種中性清潔劑(Steris公司的CIP300)。在工藝性能評定過程中，還對Steris公司的CIP200酸清潔劑和CIP 100堿清潔劑進行了評價。



結果與討論部分



Cleaning validation constitutes the documented evidence that a cleaning procedure provides equipment ready for manufacturing process, mainly in amultiproduct facility. Activities related to validation studies could be classified in three phases (16). Phase one, commonly called pre-validation, involves research, development, and equipment qualification. Phase two is designed to verify that all the critical parameter limits that have been established are valid, and that the process generates products with sufficient levels of critical quality attributes, even in worst-case situations.



清潔驗證是一種文件證據，證明一種清洗程序提供的設備可以用于生產過程，主要是多產品設備。與驗證研究相關的活動可以分為三個階段。第一階段，通常叫做預驗證，涉及調研，開發和設備確認。第二階段的設計是為了驗證所有已經建立的關鍵工藝參數限制都是有效的，并且這個工藝能夠生產出具有足夠水平的具備關鍵質量屬性的產品，即使在最壞的情況也是如此。



Phase three, the validation maintenance state, involves the frequent review of all documents related to the process performance, to ensure that no deviations, failures, or changes to the production process occurs. A careful design of systems and process controls assures process robustness and quality products.



第三階段，驗證維護狀態，涉及到與工藝性能相關的所有文檔的周期性審核，以確保不會出現任何偏差、故障或?qū)ιa(chǎn)工藝的更改。系統和工藝控制的仔細設計確保了工藝的耐用性和高質量的產品。



These phases may be applied to cleaning processes, considering that their developmentand validation are based on defining cleaning procedures and controlling analytical assays, acceptable residue limits, critical sampling points, and methods. All of these elements must be established during phase one. In this article, the authors will summarize the process used to establish cleaning procedures for two critical equipment involved in oral solid dose manufacturing in early pre-validation phase.



這些階段可以應用于清潔工藝，考慮到他們的開發和驗證是基于定義清潔程序和控制分析含量、可接受殘留限度、關鍵取樣點和方法。所有這些元素必須在第一階段建立。本文中，作者們將總結在早期預驗證階段中，為口服固體制劑生產中所涉及的兩個關鍵設備建立清潔程序的過程。



確定合理的殘留限度



In most cases, the first cleaning agent to evaluate in cleaning procedure development is a neutral pH detergent. If it does not provide consistent product removal performance, other acid or basical ternatives are assayed (17). Determining the relationship between detergent dilution in purified water and pH/conductivity values is a prerequisite for using these assays as indicators of cleaning agent removal in cleaning validation studies (18). That is why, in this research, the authors tested three different detergents to evaluate its influence in equipment cleaning procedure performance.



大多數情況下，在清潔程序開發中評估首選的清潔劑是中性pH的清潔劑。如果它不能夠很好的去除產品，其他酸或堿清潔劑將被試驗。確定在純化水中稀釋的清潔劑與PH/電導率值之間的關系是在清潔驗證研究中使用這些測定作為清潔劑去除的指示劑的先決條件。這就是為什么，在這項研究中，作者們測試三種不同的清潔劑來評估他們?cè)谠O(shè)備清潔程序性能上的影響。



For the CIP 300 detergent, pH values of different concentrations indicated that pH assays could only detect concentrations exceeding 1000 ppm. For lower levels, pH values corresponded to those of purified water (5.0-7.0). Conductivity values regarding detergent concentration showed that this type of assay could detect concentrations above 10 ppm (1.5 μS/cm-2.7 μS/cm), confirming conductivity as a better assay for determining detergent residues in final rinse water samples than pH measures as previously reported (19).



對于CIP300清潔劑，不同濃度的pH值顯示pH測試僅能夠檢測超過1000ppm的濃度。對于更低的水平，pH值對應的是純化水的pH（5.0-7.0）。電導率值與清潔劑的濃度有關顯示，這種類型的分析能夠檢測的濃度高于10ppm(1.5μS/cm-2.7 μS/cm)，確認電導率為比pH測試更好的檢測清潔劑在最終淋洗水樣品中殘留的分析在之前報道過。



In the case of the CIP 200 acid detergent, 1 ppm corresponded to the lower limit of water pH (5.20-5.76) and conductivity was in the range of 3.0-3.73 μS/cm. For the CIP100 basic detergent, the 1 ppm pH range slightly exceeded the upper limit water pH (6.92-7.31) and conductivity was between 2.29 and 3.98 μS/cm.



在CIP200的酸清潔劑情況下，1ppm相當于水pH的下限（5.20-5.76），電導率在3.0-3.73μS/cm的范圍內。對于CIP100的堿清潔劑，1ppm的pH范圍稍微超過水pH的上限(6.92-7.31)，電導率在2.29- 3.98 μS/cm之間。



Taking these results into consideration, USP purified water specification based on pH, conductivity, and TOC were adopted as acceptance criteria to evaluate cleaning process development results. Although these limits below 1 ppm for the three detergents tested is lower than the universally recognized limits of 10 ppm(20), the authors initially considered the potential cumulative effect that residues over surfaces in multiple equipment processes could have on the final product (21). The authors opted for an over dimensioned process to mitigate patient risk, but other factors could justify establishing higher limits.



將這些結果考慮在內，采用了基于pH，電導率和總有機碳（TOC）的USP純化水的規格被作為可接受限度來評估清潔工藝開發的結果。盡管這三種清潔劑的檢測限度低于1ppm，低于公認的限度10ppm，作者們最初認為，在多產品設備過程中，表面殘留物可能對終產品有潛在的累積效應。作者們選擇了一個超維度的過程來減少病人的風險，但是其他因素能夠證明建立更高限度是合理的。



Plackett-Burman 設計結果



In Plackett-Burman design, the main effects of selected experimental design variables have a complicated confounding relationship with two-factor interactions (22). Therefore, these designs should be used only to study main effects of process parameters when it can be assumed that two-way interactions between them are negligible.



在Plackett-Burman設計中，選擇實驗設計變量的主要影響是與兩因素相互之間有一個復雜的混淆關系。因此，當可以假定雙方之間的相互作用是可以忽略的時候，這些設計應該只用于研究工藝參數的主要影響。



In evaluating the results obtained from Plackett-Burman experiments, a linear model was developed between TOC values and operational cleaning parameters. The Analysis of Variance test showed that the effect dose has a probability value below 0.05, indicating its statistical significance at a confidence level of 95.0% (Table I).



在對Plackett-Burman實驗結果的評價中，在總有機碳（TOC）值和操作清洗參數之間建立了一個線性模型。方差測試的分析表明，影響劑量的概率值低于0.05，表明其統計意義在95.0%的置信水平上(表I)。

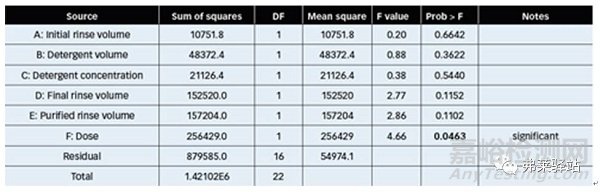

Table I: Variance analysis fortotal organic carbon (TOC) from sample analysis of the Plackett-Burman experimental design. (DF = degrees of freedom; Prob = statistical probability associated with the given F value.)

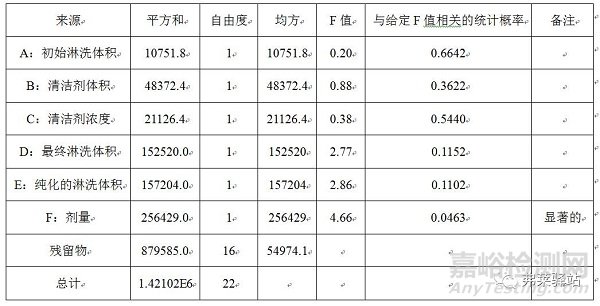

表1：通過對Plackett-Burman實驗設計的樣品分析得到TOC的方差分析。（DF=自由度；Prob=與給定F值相關的統計概率。）



R-squared statistics indicated that the adjusted model explained only 38.102% of the TOC variability. The adjusted R-squared was 14.8902%, suggesting that the linear equation obtained did not completely explain the system’s behavior, so it is likely that higher order interactions take place between the operational variables.



R²統計表明調整后的模型只解釋了38.102%的總有機碳變異性。調整均方是14.8902%，表明線性方程并沒有完全解釋系統的行為，因此很可能在操作變量之間進行更高階的交互。



The Durbin-Watson (DW) statistic was more than 5.0%, proving that there was no serial correlation in residuals. The Plackett-Burman final equation (Equation1), in terms of decoded factors, was:



杜賓-沃森統計數據超過了5.0%，證明了殘差沒有連續的相關性。Plackett-Burman的最終方程（方程式1），在解碼因子方面是：



[Eq. 1] TOC—525.397—0.36299• Initial Rinse — 6.15948 •Detergent Volume + 1.52647 • Detergent Concentration — 1.36716 •Final Rinse — 1.38799 • Purified +0.5559804 • Dose



[Eq.1] TOC—525.397—0.36299• 初始淋洗體積 —6.15948 •清潔劑體積 +1.52647 • 清潔劑濃度— 1.36716 •最終淋洗體積— 1.38799 • 純化的淋洗體積 +0.5559804 • 劑量



As expected, this equation indicated that initial rinse, detergent, final rinse,and purified rinse volumes have a negative correlation with TOC values, and increasing dose and detergent concentration also increased the expected TOC results.



正如預期的那樣，這個方程式表明，初始淋洗，清潔劑，最終淋洗和純化淋洗體積與總有機碳值有負相關，增加劑量和清潔劑濃度也增加了預期的總有機碳（TOC）的結果。



Fractional factorial design results. The low Plackett-Burman adjusted R-squared (14.8902%), indicated that linear equation obtained did not completely explain the system’s behavior. To explain the possible interactions between these variables on TOC variability, a fractional factorial design was completed using the results of the common experiments ofthe Plackett-Burman design. Analysis of variance results are shown in Table II.



部分階乘實驗設計的結果。較低的Plackett-Burman調整了R²（14.8902%），表明線性方程并不能完全解釋系統的行為。為了解釋這些變量在總有機碳（TOC）變異性之間可能的相互作用，利用Plackett-Burman設計的共同實驗的結果，完成了一個部分階乘實驗設計。對方差結果的分析如表II所示。

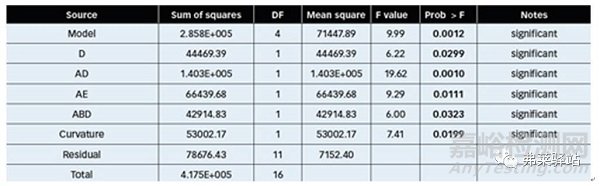

Table II: Variance analysis for total organic carbon (TOC) from sample analysis of two-level factorial experimental design. (DF = degrees of freedom; Prob = statistical probability associated with the given F value.)



表II：從二水準部分階乘實驗設計的樣本分析中得到對總有機碳（TOC）的方差分析。(DF=自由度；Prob=與給定F值相關的統計概率。)



Values of probability less than 0.0500 indicated significant model terms. In this case, D (Industrial water final rinse), AD (interaction of initial industrial water rinse and Industrial water final rinse), AE (interaction of initial industrial water rinse and purified water final rinse) and ABD (interaction of initial industrial water rinse, detergent volume, and Industrial water final rinse) were significant in model terms. Detergent concentration in the range analyzed was not statistically significant.



概率值小于0.0500表示模型是顯著的。在這種情況下，D（飲用水的最終淋洗體積），AD（初始飲用水的淋洗體積和飲用水的最終淋洗體積之間的相互關系），AE（初始飲用水的淋洗體積與純化水的最終淋洗體積之間的相互關系）和ABD（初始飲用水淋洗體積，清潔劑體積和飲用水最終淋洗體積）在模型上是顯著的。在分析范圍內的清潔劑的濃度是具有統計學意義的。



Adequate precision measures the signal-to-noise ratio.  A ratio greater than fouris desirable. The obtained ratio of 10.918 indicated an adequate signal. Residuals were also checked for normality.



足夠的精度測量信噪比。大于4的比率是可取的。所獲得的10.918的比率表明了一個充分的信號。對殘留物也進行了常規檢查。



The final equation (Equation 2) in terms of decoded factors was as follows:



[Eq. 2] TOC—268.69—55.06● Final Rinse + 97.81 ● Initial Rinse ● Final Rinse + 67.31 ● Initial Rinse ● Purified Rinse—54.09 ●  Initial Rinse  ● Final Rinse  ●  Detergen t Volume



最終方程式（方程式2）的解碼因子如下：



[Eq.2] TOC—268.69—55.06●最終淋洗體積+ 97.81●初始淋洗體積●最終淋洗體積+ 67.31●初始淋洗體積● 純化的淋洗體積—54.09● 初始淋洗體積●最終淋洗體積 ●清潔劑體積



This model explains as much of 70.56% of the process variability, and is more exactin describing the influence of process parameters than the linear model obtained from the Plackett-Burman design.



這個模型解釋了過程變異性的70.56%，比從Plackett-Burman設計中獲得的線性模型更準確的描述了工藝參數的影響。



IBC容器清潔流程開發



The Plackett-Burman-derived equation was evaluated for different products doses using Microsoft Excel’s Solver program, in which only process variables were changed. This procedure allowed recipes to be defined for each group of products based on product dose. Because detergent concentration was determined not to be a significant parameter from both experimental designs, it was restricted as a constant to the minimal value assayed. All restrictions were constricted to the range of cleaning process parameters included in the experimental design.



使用Excel的求解程序，Plackett-Burman衍生方程式在不同產品劑量中被評價，在此過程中，只有過程變量發生了改變。這個過程允許根據產品的計量為每組產品定義配方。因?yàn)榍鍧崉舛鹊臋z測不作為實驗設計的一個重要參數，他被限制為一個常數，以達到最小值。所有的限制都被限定在實驗設計中包含清潔工藝參數的范圍之內。



The resulting procedures were evaluated in at least two containers for seven other products. Results of this testing demonstrated that predicting cleaning process parameters, using the statistically obtained model, was adequate for meeting the acceptance criteria for different doses and for solubility products of batches ranging from 90 to 180 Kg (Table III).



最終的程序在7個其他產品的至少2個容器中被評估。該實驗的結果表明，使用統計學獲得的模型在對清潔工藝參數的預測中，足以滿足不同劑量、產品批量在90-180kg的可溶解產品的可接受標準。（表III）

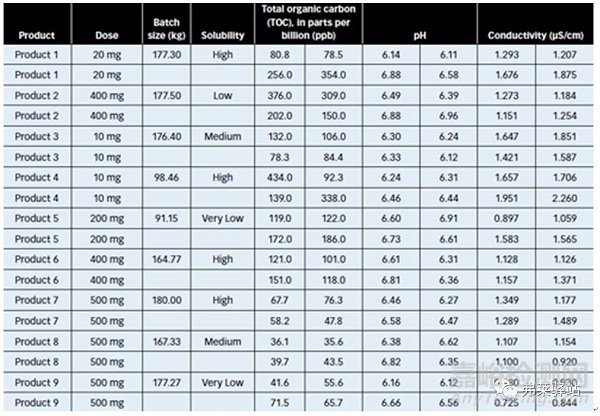

Table III: Results of applying container-cleaning procedures, using recipes developed with Plackett-Burman methods.

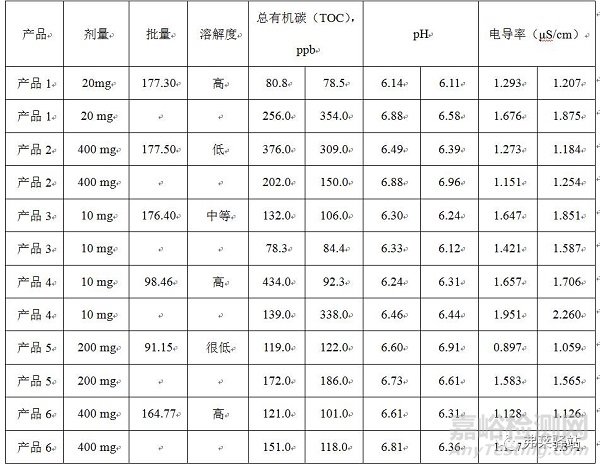

表III：應用容器清洗程序的結果，用Plackett-Burman方法開發的方法。



When used correctly in the right circumstances, visual inspection is a powerful detection method (23, 24). Using the approach outlined in this article, visual inspection of equipment surfaces revealed no residues, suggesting that the method is effective.



在正確的情況下正確使用時，目視檢查是一種強大的檢測方法。使用本文所述的方法，對設備表面的目視檢查要做到?jīng)]有發現殘留物，才表明該方法是有效的。



Cleaning procedures developed for product dose groups allowed for reducing process time because the worst-case cycle approach requires 11 minutes. For lower doses, the process times were as follows:



Product 3-10 mg: 6 minutes



Product 1-20 mg: 7 minutes



Product 5-200 mg: 8 minutes



Product 2-400 mg: 9 minutes.



為產品劑量組開發清潔程序允許減少時間過程，因?yàn)樽顗那闆r的循環方法需要11分鐘。對于較低的劑量，過程時間如下：



產品劑量3-10mg：6分鐘



產品劑量1-20mg：7分鐘



產品劑量5-200mg：8分鐘



產品劑量2-400mg：9分鐘



The Plackett-Burman model was more practical because it allowed the authors to define operational parameters for 13 groups of products based only on the results obtained with two products of different dose and solubility. This method could be easily applied in situations where new automatic systems are installed in a facility to establish cleaning process conditions faster and at lower cost than developing cleaning process conditions for each product separately.



Plackett-Burman模型更實用，因?yàn)樗试S作者們根據不同劑量和溶解度的兩種產品得到的結果，為13組產品定義操作參數。這種方法可以很容易的應用于在設備安裝的新自動化系統，以更快的建立清潔工藝條件，并且比單獨為每一個產品開發清潔工藝條件的成本更低。



Other critical elements that should be validated are the maximum delay before cleaning (i.e., the maximum amount of time that the equipment should be dirty before it is cleaned (25) and the maximum time that it could remain clean after the applied procedure (26). These values could be included as input and output variables, respectively, in the experimental design.



其他需要驗證的關鍵因素是清洗前的最大延遲（即：設備在清洗前保持未清潔的最大時間和應用程序后保持清潔的最大時間。在實驗設計中，這些數值應該分別被包括在輸入和輸出變量中）。



制粒機清潔流程開發



In order to speed development of a cleaning procedure for a vertical granulator, a relationship between the granulator and the container product contact surface area and cleaning volumes was calculated. This approach facilitated the process of develop and evaluating cleaning recipes previous to validation.



為了加快立式制粒機的清潔程序的開發，計算了制粒機和容器的產品接觸表面積和清潔體積之間的關系。這種方法促進了開發和評估在進行驗證之前的清潔配方的過程。



For scale-up, a ratio was obtained between the total volume of water required to clean 500-mg dose containers and the container area. This value was related to the correspondent 600-L granulator product contact area, and the relationship used to determine the volume required for cleaning.



為了擴大規模放大產品，在清洗500mg劑量的容器所需的總水量和容器面積之間得到一個比率。這個值與600L的制粒機產品接觸面積有關，這種關系用于確定清潔所需的體積。



The cleaning procedure was adjusted sequentially, in order to reach the total calculated volume. This volume was then used as a central point, and variation around it was determined, using a fractional factorial design for three variables with no central point.



清洗程序按照順序進行調整，為了達到總計算體積。這個體積隨后被用作中心點，并確定了圍繞它的變量，使用了一個沒有中心點的3個變量的部分階乘設計。（部分析因設計）



Two categorical variables were used (two different 500-mg products and two different detergents). Robustness of the design space for the cleaning procedure was determined in eight runs with two different 500 mg product doseand CIP 200 and CIP 100 detergents.



使用兩種分類變量（兩種不同的500mg產品和兩種不同的清潔劑）。清洗程序的設計空間的耐受性是在用兩種不同的500mg產品劑量和CIP200，CIP100清潔劑的8次運行中確定的。



Results indicated (see Table IV) that in all cases, actual residue limits were below the levels calculated, and were in the parts-per-million of TOC for Product 7 and Product 8.



結果表明（見表IV）在所有情況下，實際殘留限度低于計算的水平，并且在產品7和8的總有機碳的每百萬分中。

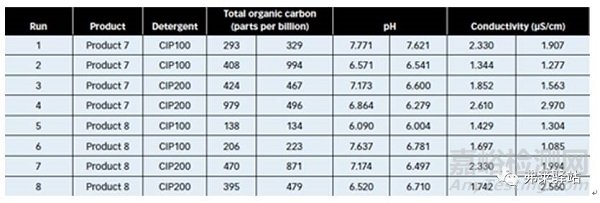

Table IV: Results of a design space cleaning procedure developed for a 600-L Glatt vertical granulator, using the ratio of water volume to equipment surface. CIP is clean-in-place. Visual inspection confirmed that the procedure development was robust. No residues could be detected on any of the equipment surfaces.



表IV：清洗程序空間設計的結果，該程序是為一種600L的格拉特立式制粒機開發的，用了水體積和與設備表面積的比率。目視檢查證明了該程序的開發是耐用的。任何設備表面都不能檢測到殘留物。



結論部分



Evaluations suggest that the mathematical model obtained from a Plackett-Burman design can predict, with a high degree of accuracy, the optimal conditions for the processof IBC cleaning. Results using the model were checked in nine products in atleast two independent replicates. In all cases, the results were obtained within the acceptance limits of product and detergent removal.



評估表明，從Plackett-Burman（篩選試驗設計）得到的數學模型能夠準確地預測IBC清洗過程的最佳條件。使用該設計模型的結果在9個產品至少兩個獨立的重復中被檢查。在所有情況下，這些結果都是在產品和清潔劑去除的可接受范圍內得到的。



Application of different cleaning process parameters (in terms of rinse and detergent volumes) for each product allowed water consumption to be reduced by 320 L per container, resulting in better use of installed capacities for clean-out-of-place cleaning of IBCs, because each type of product had a defined process time. If the common approach of determining the “worst-case” procedureis used for all containers, time and water wastes are significantly increased.



每一種產品的不同清潔工藝參數（淋洗和清潔劑體積）的應用允許每個容器的耗水量減少至320L，源于更好地利用了IBC的離線清洗組裝能力，因?yàn)槊恳活愋偷漠a(chǎn)品都有一個確定的工藝時間。如果確定最壞情況程序的常用方法被用于所有的容器，時間和水的浪費會顯著增加。



When the process was scaled up to clean a vertical granulator, results of the predicted design space were higher than those obtained for IBC, but all results were below 10 ppm, demonstrating that experimental design can be a powerful tool for developing more robust cleaning procedures.



當這個過程被擴大規模來清洗立式制粒機時，可預測性的設計空間結果會比IBC要高，但是所有的結果都低于10ppm，表明實驗設計可以成為一個強有力的工具來開發更耐用的清潔程序。
